Insulation Compounds
| 60C | PolyVinyl Chloride | Rated 300 & 500 | Volts/Mil |
| 80C | PolyVinyl Chloride | Rated 500 | Volts/Mil |
| 105C | PolyVinyl Chloride | Rated 500 | Volts/Mil |
| 105C | TPE | Rated 600 | Volts/Mil |
| 80C | Polypropylene (PP) | Rated 600 | Volts/Mil |
| Hytrel |
Jacket Compounds
Colors Upon Request
- 60C,80C,105C PolyVinyl Chloride (PVC)
- Polyurethanes(PU)
- 105C Thermoplastic Rubber(TPR/TPE)
- Hytrel
Jacket Compounds
- Single Conductor to Multi-Conductor Cables
- Served Shield
- Mylar Shield
- Braid Shield
Wire
- 28 to 14 Gauge Copper Wire, Bare or Tinned
- 28 to 14 Gauge Soft Tinned Copper
- Most of our wire is UL approved or CSA certified and all of our wire is RoHS compliant.

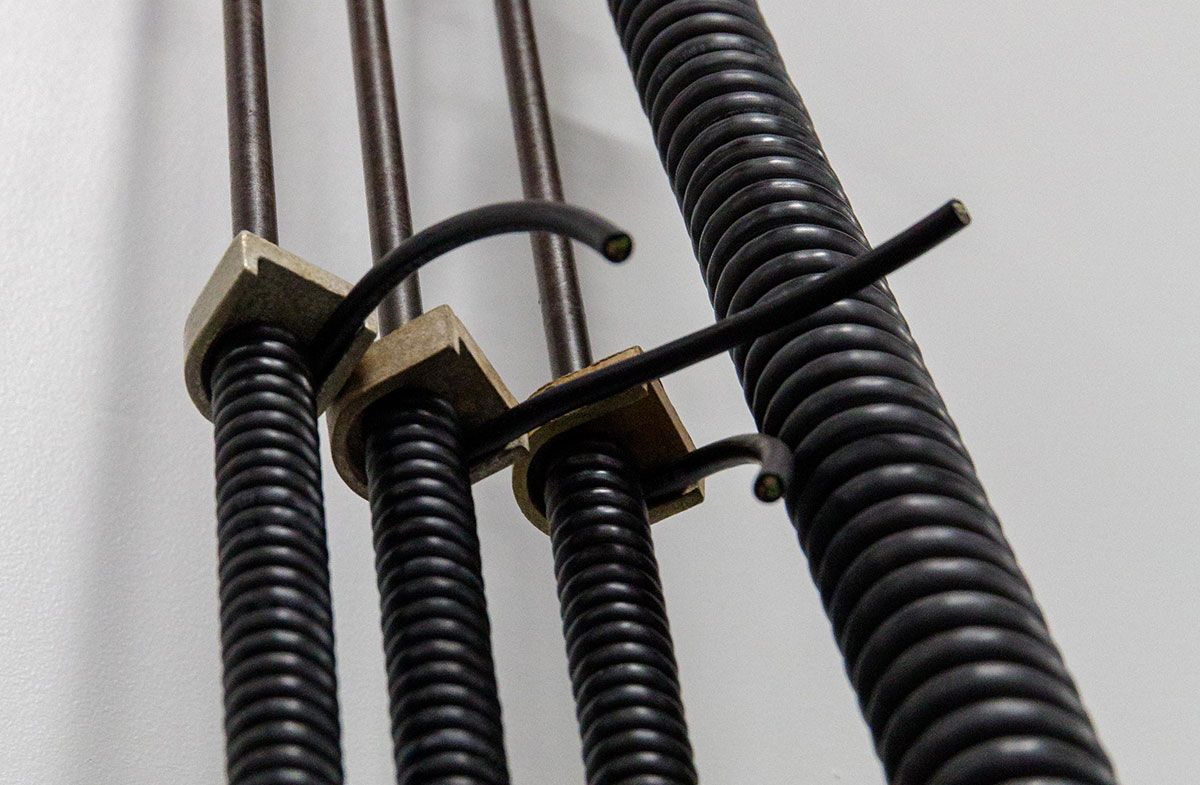

Coiling
- Most of the cable constructions listed above can be coiled (except those made with braided shields).
- Retractable cords range from 1 inch to 20 feet with a maximum extension of 100 feet.
- Extended lengths are guaranteed. Retracted lengths are approximate. Allow for shrinkage.
Applications
(partial listing)
| Defibrillator | Medical Electronics |
| TV Hand Held Camera (Coaxial) | Marine Telephones |
| Language Lab | Telecommunications Cords |
| Robotic Cords | Microphone Cords |
| Data Processing Printer Cords | Aircraft-Communication Head Sets |
| Metal Detectors(Field Hand Held Units) | Equipment Control Cords |
SWC is ready to give it’s customers all the technical help needed to design their cables to insure a quality product at very competitive pricing.
