Miniature

TPE Cords with Foil Shield

TPE 28 Gauge with Foil Shield – (Made to Order) RoHS Compliant

Retracted Lengths 48″, 36″, 24″, 12″
Extended Lengths: Ratio 1:5 105deg C Non-UL

P/N Conds Strand Volts AMP Cable OD ** Coil OD** Weight per cord (lbs)
            12″ 24″ 36″ 48″
28AWG 7/36TC TPE JACKET FOIL SHIELDED NON UL 105C RoHS
T282PA 2 7/36 300 1 0.16 0.57 0.17 0.31 0.44 0.61
T283PA 3 7/36 300 1 0.17 0.59 0.19 0.34 0.5 0.68
T284PA 4 7/36 300 1 0.18 0.6 0.2 0.36 0.52 0.72
T285PA 5 7/36 300 1 0.19 0.61 0.23 0.42 0.6 0.83
T286PA 6 7/36 300 1 0.2 0.63 0.25 0.45 0.65 0.9
T287PA 7 7/36 300 1 0.2 0.65 0.26 0.47 0.68 0.94
T288PA 8 7/36 300 1 0.22 0.75 0.29 0.52 0.75 1.04
T2810PA 10 7/36 300 1 0.23 0.78 0.32 0.58 0.83 1.15
T2812PA 12 7/36 300 1 0.24 0.82 0.34 0.61 0.88 1.22

Tinned Soft Copper PP Insulated

TPE Jacket – Black Matte

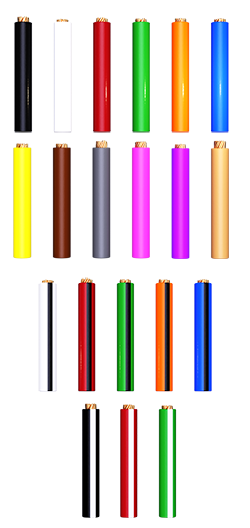

Power Cord Color Chart #1

Conductors Color Stripe Color
1 BLACK –
2 WHITE –
3 RED –
4 GREEN –
5 ORANGE –
6 BLUE –
7 YELLOW –
8 BROWN –
9 GRAY –
10 PINK –
11 VIOLET –
12 TAN –
13 WHITE BLACK
14 RED BLACK
15 GREEN BLACK
16 ORANGE BLACK
17 BLUE BLACK
18 BLACK WHITE
19 RED WHITE
20 GREEN WHITE
color chart 1

Options Available

  • Tinned Copper Served Shield – 90% Coverage – Change Suffix letters from PA to PS
  • Other Gauge Sizes And/Or Strandings available

**Inches — Dimensions Are Nominal
